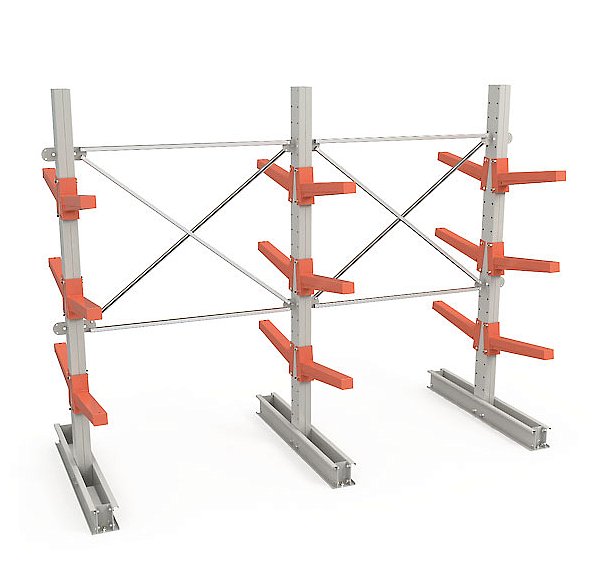

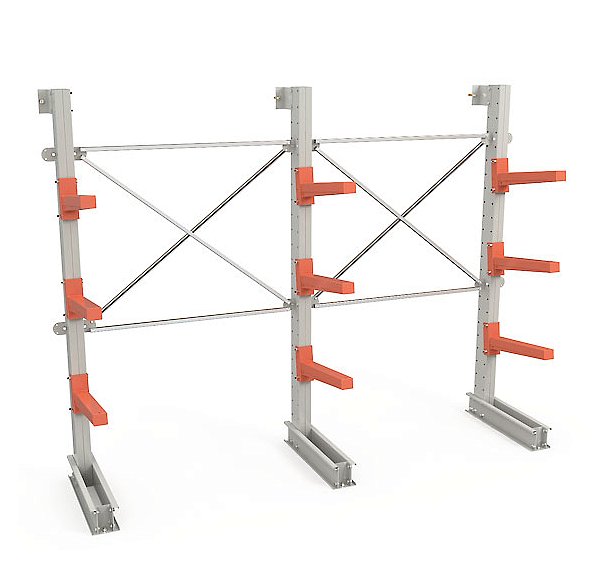

Cantilever rack

A durable and convenient rack for storing long loads-beams, pipes, profiles, and structural elements. Each pair of cantilevers holds up to 1400 kg.

Advantages

Compact storage of cargo starting at 1.5 meters in length.

Our design allows you to load cargo from both sides.

Shelving withstands up to 4 tons of cargo.

When installed in a single row, all the characteristics are increased in proportion to the number of partitions.

Convenient front cargo access for personnel and equipment.

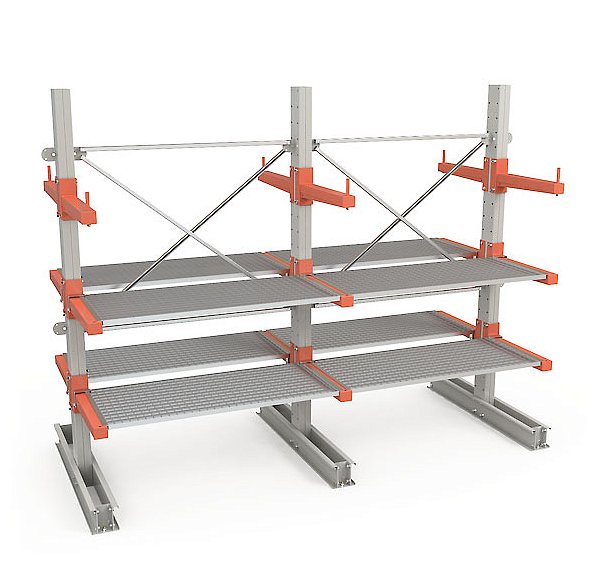

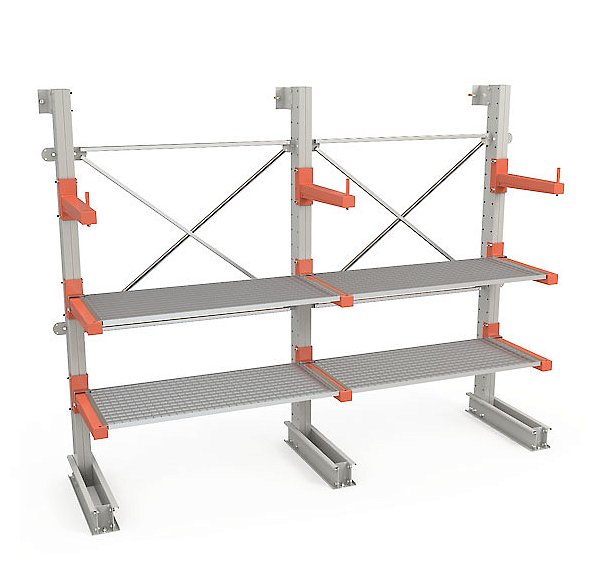

Special planks to hold shorter cargo may be installed on the cantilevers.

A restrictor may be installed on the cantilevers to prevent cargo from sliding off.

The cantilevers can be installed at an angle.

DiKom Cantilever rack ST-062

Storage type:
cargo over 1.5 m long. Less than 1.5 metre long cargo can be stored on special planks.
Height:
2500 mm
Cantilever depth:
630 mm
Section length:
1500 mm
Layout:
longitudinal
Servicing:
manual, stackers, automated
Max load on a pair of cantilevers:
up to 1400 kg
Load per rack (for unilateral racks):
up to 2000 kg
Load per rack (for bilateral racks):
up to 4000 kg
Maximum load per plank:
up to 400 kg (provided the cargo doesn’t contact the consoles).
Flooring:
concrete coating. Slope: less than 2 mm per 1000 mm in length.

How to order the cantilever rack?

The order is placed in several stages, including specialist consultation and design.

You can contact our specialists by phone or come visit our sales office. Our specialist will understand all your needs, consult you on the product assortment and fill out the order form.

Our specialists will offer you the best solution for your warehouse based on the project documents. We’ll work in accordance with your wishes, budget, timing and the characteristics of your premises.

If your total purchase price is over 30 000 rubles, all the measurements and project documentation are done free of charge.

You can pick up the product from our sales office yourself or take advantage of our delivery. We ship directly to St. Petersburg, Moscow, Voronezh, Yekaterinburg and Krasnoyarsk. We guarantee:

  • Convenient delivery date and time;
  • Careful transportation on specially equipped vehicles;
  • Fast product replacement in case of damage during delivery.

Delivery to other cities is carried out through transport companies.

We use professional rigging to safely deliver bulk and heavy cargo. This is an additional service and is not included in standard delivery.


Most of our products are collapsible and convenient to transport. You can easily assemble one or two products yourself, but when ordering large quantities, we recommend using our professional assembly services. Correctly assembled shelving lasts longer and is safe.

We also offer installation control service. This means that our specialist will control the entire assembly process.

The racks is now ready to use. But our work does not end there.

All repairs or replacements are free within the warranty period provided that the product was properly used.

Plan to buy more of our products? We can draw up an annual maintenance contract. You’ll be able to place new orders even faster and your personal manager will examine the specifics of your business all the way through.
