DiKom VS-series

VS series products are designed for heavy-duty industrial and mechanical work due to their rigid construction and reinforced components.
The technical characteristics of this series make it a unique product in the Russian market.

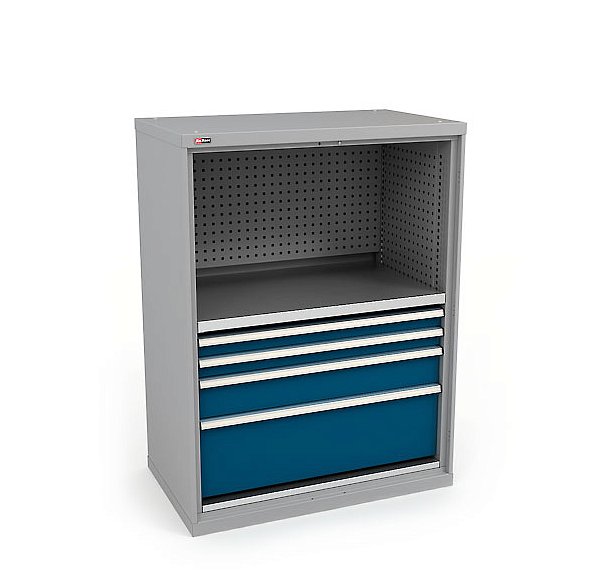

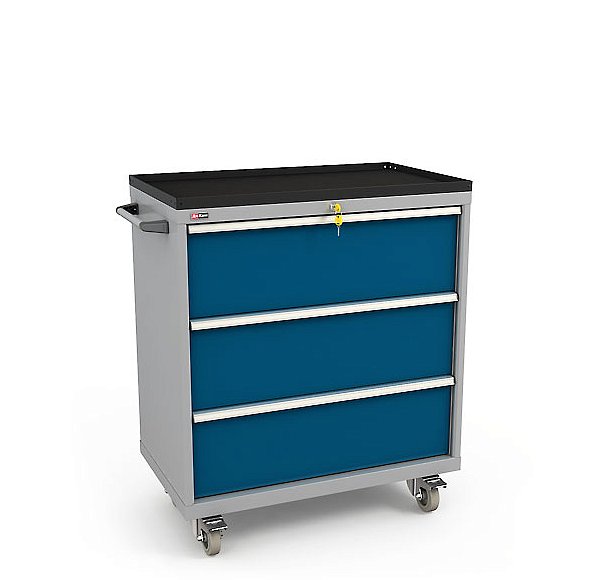

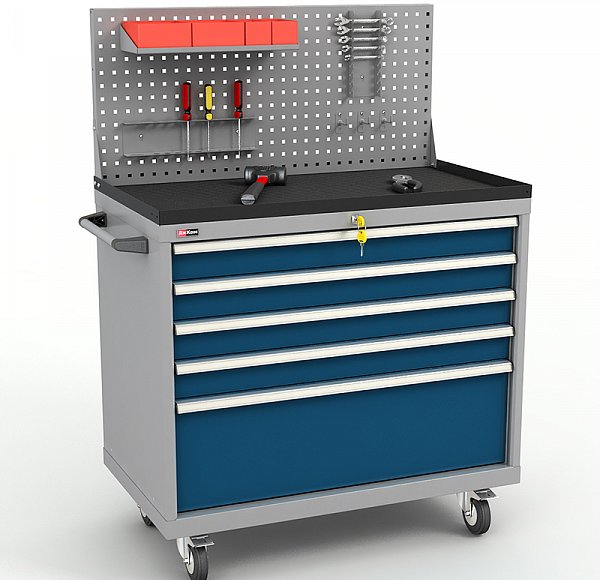

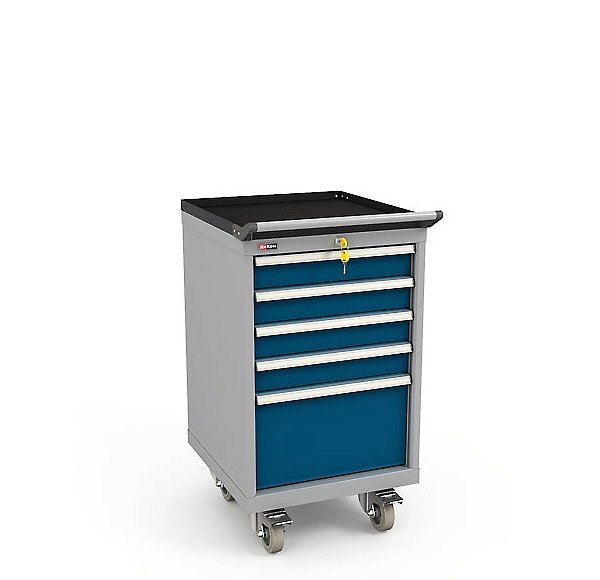

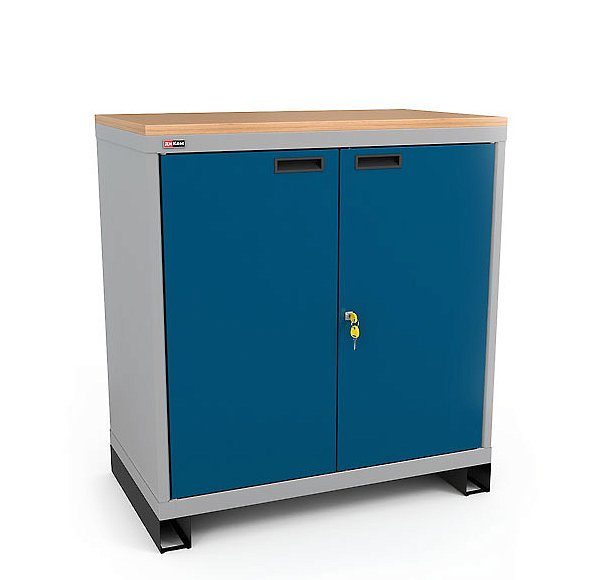

VS Tool Cabinet

Designed for easy tool storage and work. Can be used as compact mobile Work-benches.

  • Anti-tilt system.
  • Cabinets can be installed on top of each other using a special connection kit.
Maximum load per drawer:
100/200 kg (when using an additional set of rail guides)
Maximum load per set of castors:
1500 kg
Width:
565, 718, 1024 mm
Height:
from 600 mm
Depth:
600, 750 mm
Number of drawers:
3,4,5,7. A model with shelves and a hinged door is also available.

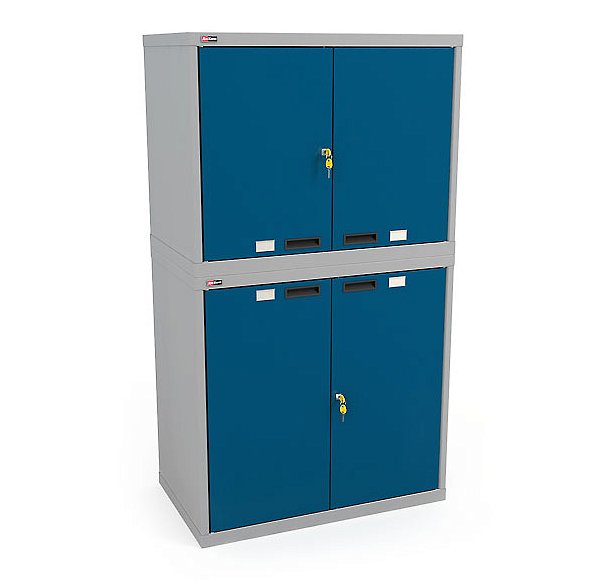

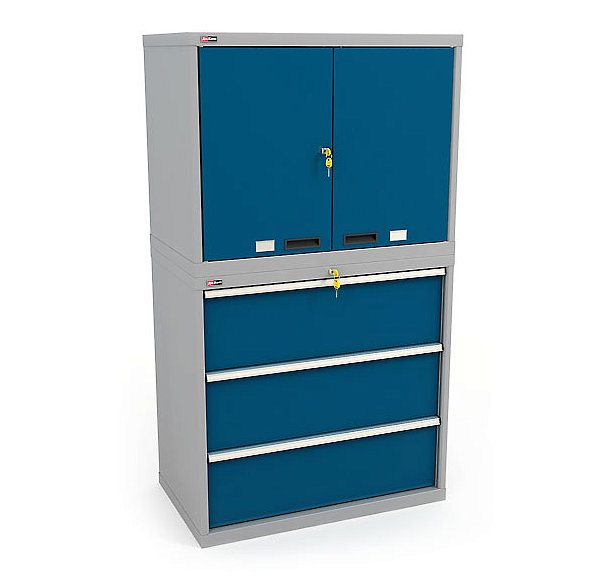

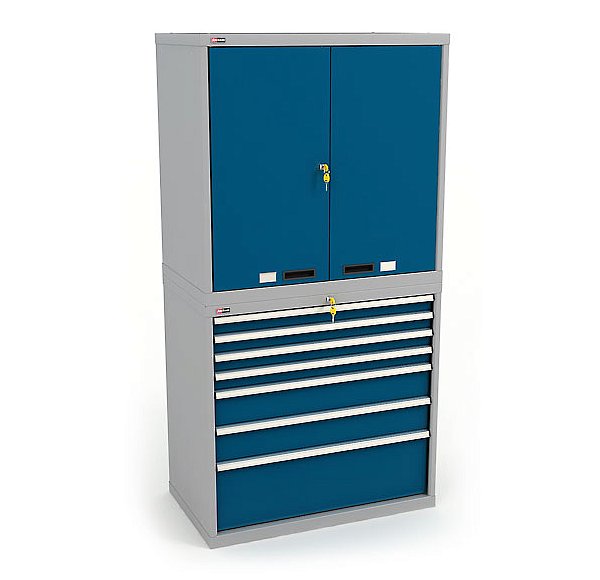

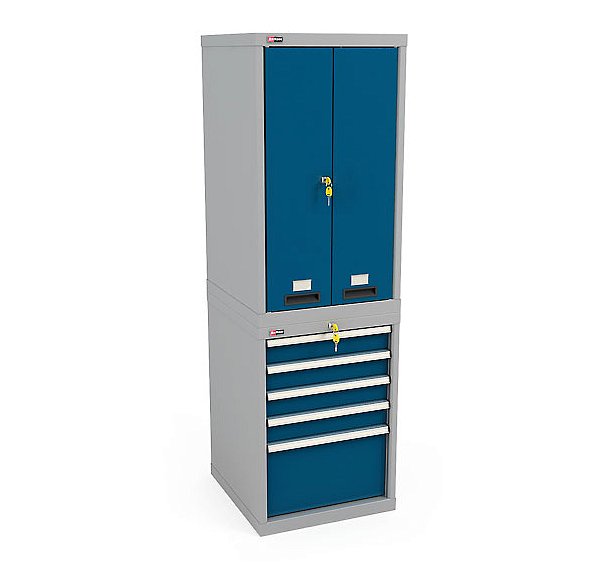

Joint VS Tool Cabinets

One-size VS cabinets can be installed on top of each other using a special connection kit. This way you can get a roomy and functional welded tool cupboard.

  • Cabinets with drawers are supplied with an anti-tilt system.
  • Welded frame and drawers.
  • Cupboards are composed of two same-size cabinets.
  • German EURO-LOCKS locking system.
  • An additional tool storage system can be installed.
Maximum drawer load:
100/200 kg (when using an additional set of rail guides)
Maximum load per shelf:
200 kg

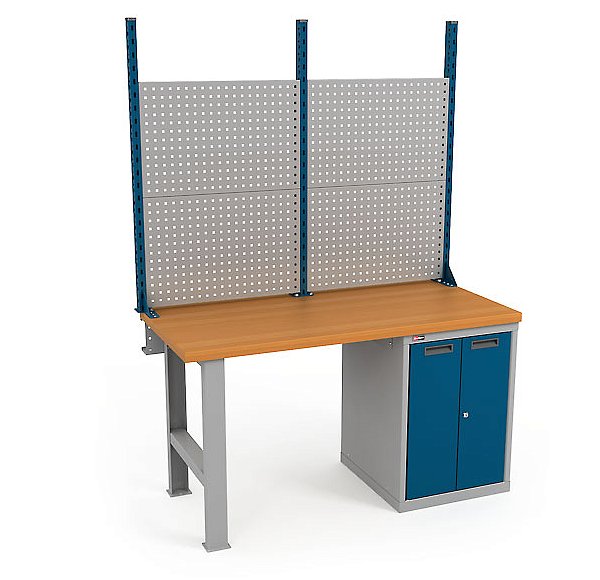

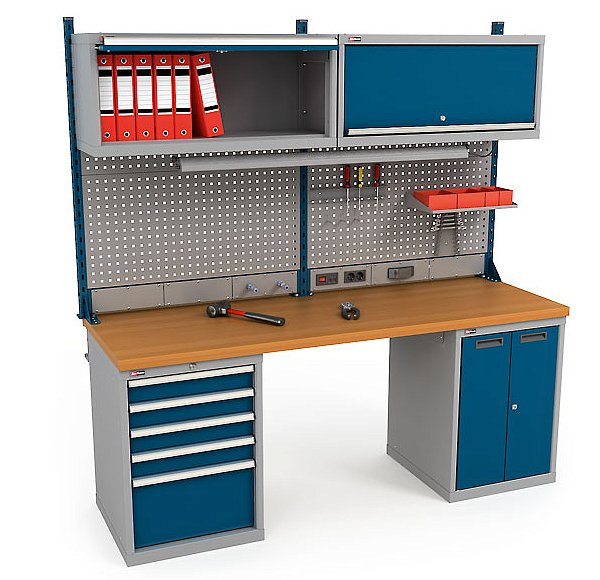

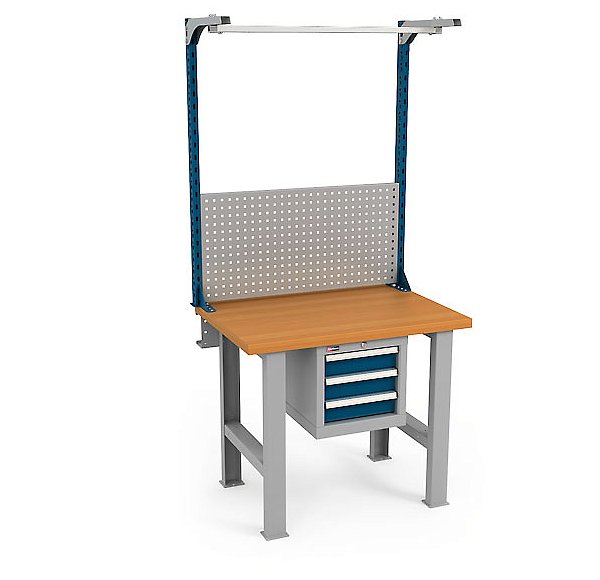

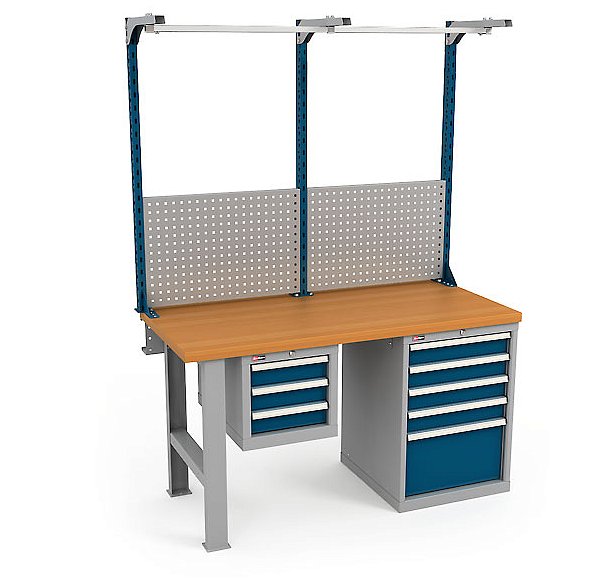

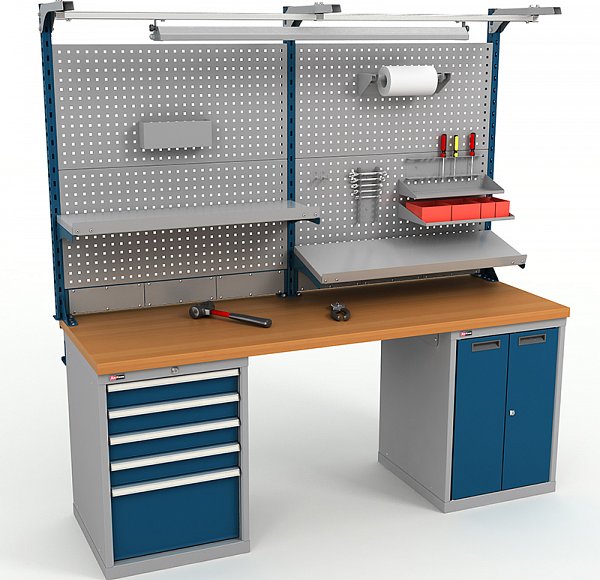

DiKom VS Workbench

Designed for mechanical work. Allows you to work with heavy parts and products.

Products hold up to 3000 kg due to the unique design of welded cabinets, the high-quality iron supports, thick tabletop and rigid.

  • The tabletop is available in: solid ash wood, plywood, plywood covered with galva-nized metal, or plywood with a steel sheet on top.
  • The perforated panel can be supplemented with a communications box.
  • Additional elements: smaller-size cabinets, perforated panel accessories, lighting.
Maximum workbench load:
up to 3000 kg (depending on the model)
Maximum load on the perforated panel:
100 kg
Height (without the perforated panel)
840 mm
Width:
1000, 1500, 2000 mm
Depth:
700 mm

Before purchasing the Ash Tabletop, please read the storage and operation manual. Extremely high or low humidity as well as placing the product next to heat sources will negatively affect the wood. Download the manual

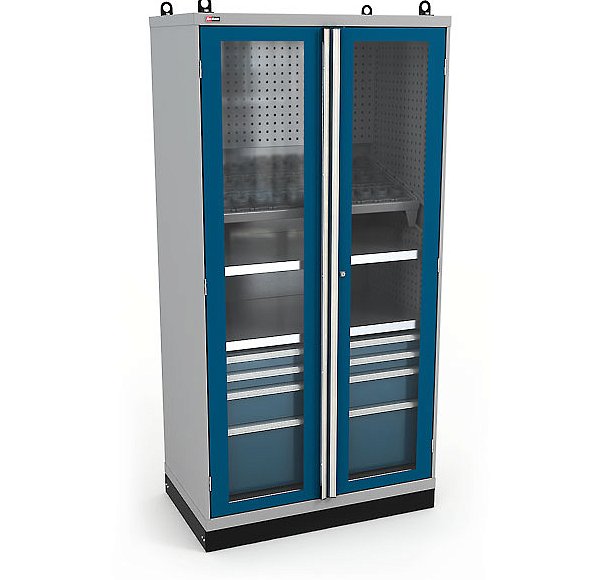

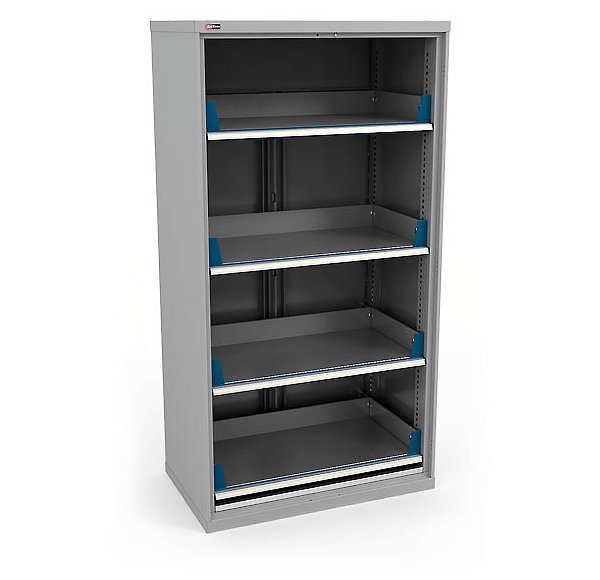

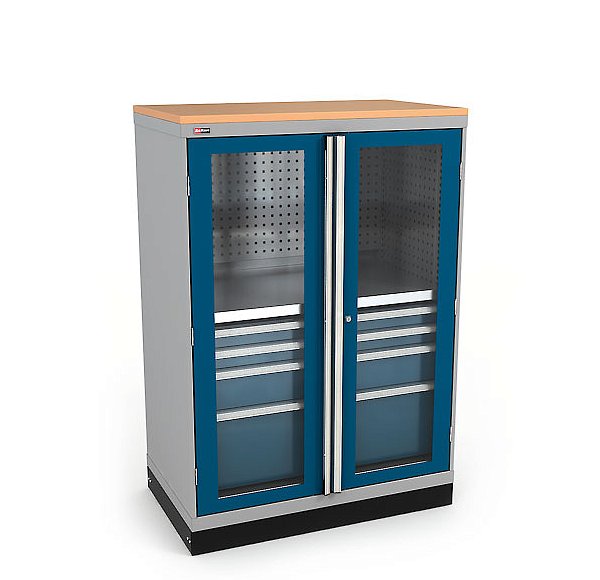

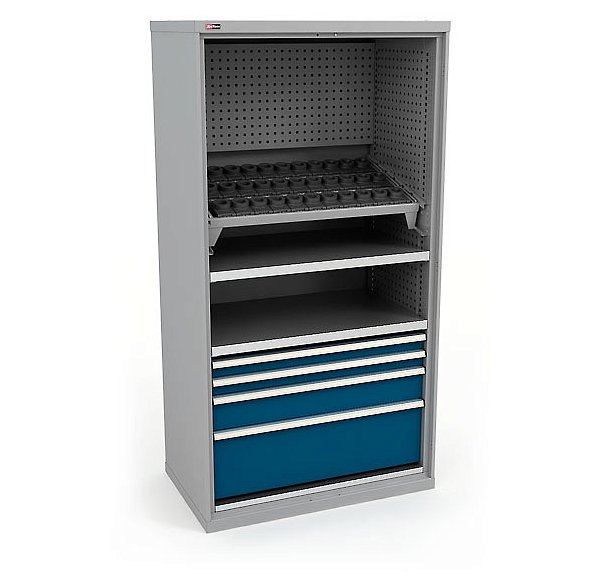

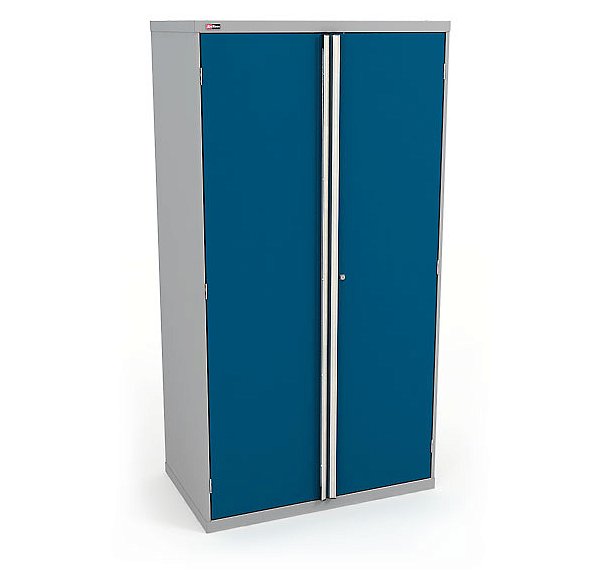

DiKom VS Tool Cupboards

Designed for storing and working with the tool in the workplace. The following internal modules are available: drawers, shelves, roll-out platforms, perforated panels, rails and frames for tool holders. A tabletop, crane transportation set and stand are also available for use with VS cupboards.

  • Choose from two types of doors: regular or with windows made of transparent impact — resistant polycarbonate.
  • Internal modules are chosen individually.
  • Full extension drawers are supplied with telescopic rail guides.
  • EURO-LOCKS (Germany) locking system. Two-point locking system. Magnetic latch.
Height:
2000, 1400 mm
Width:
1050 mm
Depth:
625 mm
Maximum load per drawer:
100/200 kg (when using an additional set of rail guides)
Maximum load per shelf:
200 kg
Maximum load per roll-out shelf:
200 kg
Maximum load per cupboard:
1200 kg

When choosing a cabinet with drawers or roll-out platforms we recommend adding an anti-tilt system for safety reasons.

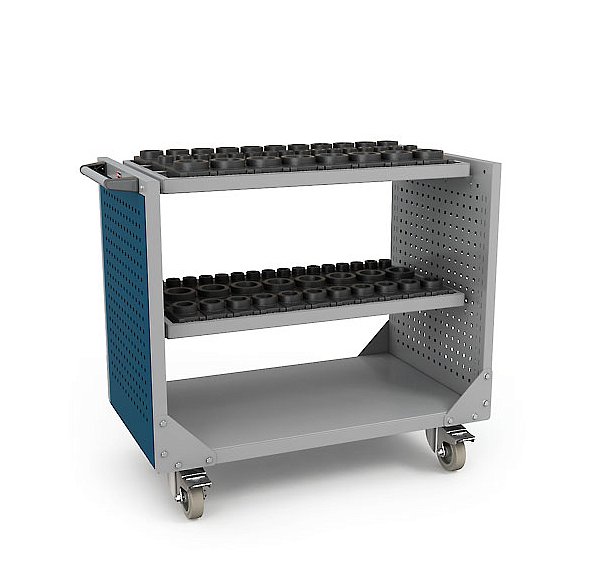

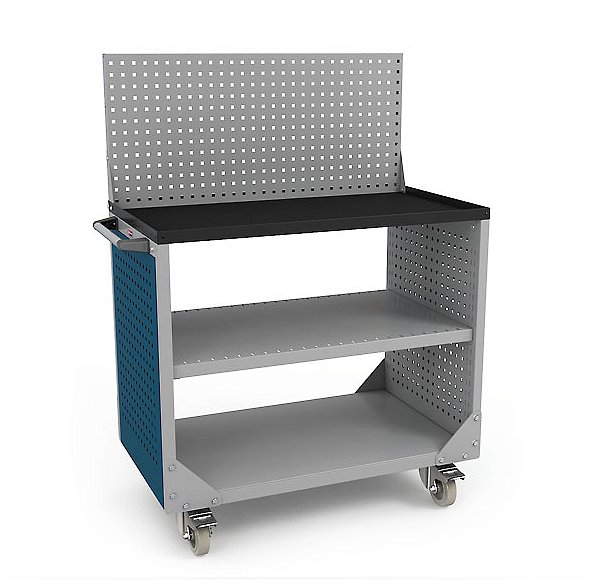

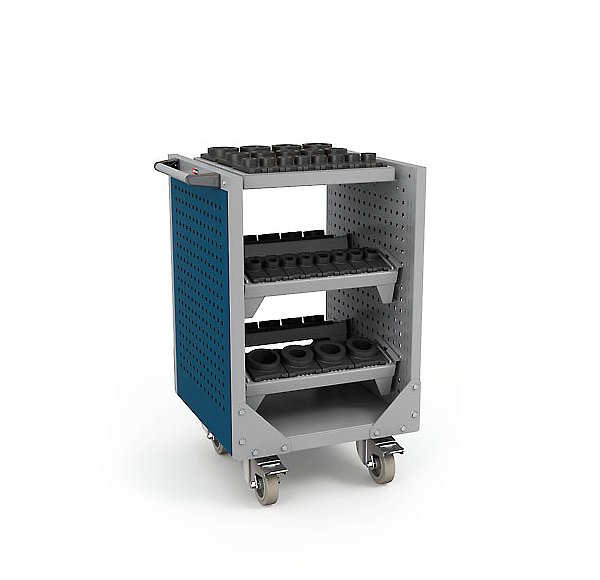

DiKom VST Trolley

Designed to move goods, hardware, parts and tools in industrial premises. Profes-sional trolleys, suitable for use in the heavy industry. An additional tool storage sys-tem can be installed.

  • Swivel castors, two castors with brakes.
Maximum load:
600 kg
Maximum shelf load:
200 kg

VS-Series Advantages

Monolothic

The cabinets are fully welded. They include up to 130 points of welding and up to 250 mm of welding seam. Modern welding technologies provide quality and accuracy. This makes the product very rigid. It won’t tilt over when installed on uneven flooring, due to intensive exploitation, strong side impacts, etc.

Heavy-duty tabletops

We offer three types of tabletops:

  • 40 mm ash
  • 40 mm plywood
  • 40 mm plywood with a metal sheet (3 mm) on top.

All table tops are made of waterproof high-quality plywood (without knots), all facets are processed (i. e. all the rough edges are polished). Tabletops are covered with wax-based lacquer in two layers. The surface is polished before being covered with the second layer of lacquer.

Rigid heavy-duty construction

The frames of our workbenches are assembled using powerful bolts with self-locking nuts. This provides a very sturdy foundation for the frame even prior to installing the tabletop. The casing is welded from 1.2 mm metal.

Central lock with an anti-tilt system

All products are fitted with German EURO-LOCKS locking systems with a privacy of 2000 combinations. VS series keys have plastic cover. Lids and locking mechanisms are positioned in the centre of all cabinets and drawers. Products are equipped with an anti-tilt system (only one drawer can be opened at a time). All drawers close on a shared lock.

Full extension guides

Full extension drawers are supplied with rail guides. Intensive operating load — 100 kg (supports no fewer than 50 000 openings over 10 years of operation). Drawers 150 mm and higher can be supplemented with a second rail kit. In this case, the maximum operating load increases to 200 kg.

Assembly using couplers

We secure the tabletop to the workbench frame using powerful bushings and bolts. Bushings of up to 32 pieces are installed by us — that means you just have to tighten the bolts as needed.

Unique lighting design

Energy-saving 1200 Lx. LED lighting provides the necessary illumination. You can adjust the brightness and angle of the lighting. It also includes an on/off button. The lamp has an EMC certificate which makes it suitable for electrical work. The lamp control unit is located in a separate box — it doesn’t heat up or radiate a magnetic field.

Useful accessories

Accessories are easy to install on our perforated panels. Hooks are a convenient and reliable way to fasten anything you need. Accessories are suitable for both VL and VS series workbenches, as well as cabinet, cupboard, etc. perforated panels. These are hinged shelves, storage containers, screwdriver and wrench holders, hooks and towel holders. Accessories are equipped with non-removable latch devices. VS panels can be supplemented with heavy-duty shelves to hold loads up to 40 kg.

Smart storage

We have various products to help you organize our VL and VS series cabinet drawers.

  • Different-size cubic and cylindrical storage containers (match all standard drawers), metal partitions (drawers are specially perforated)
  • Anti-slip mats of high-grade rubber resistant to aggressive liquids, scratches and damage.

High quality coating

We coat our industrial furniture with TEKNOS (made in Finland) epoxy powder paint. Epoxy powder paint is more resistant to mechanical stress and aggressive fluids (electrolyte, brake fluid, solvent, etc.).

Communications box

Can be installed on or below the VS perforated panel. Consists of 2 or 3 compartments, depending on the panel size. Upon request, these may include special inserts with: adapters, circuit breaker. Insert for air output. Inserts with adapters can be filled with sockets, switches or a set of power outlets.

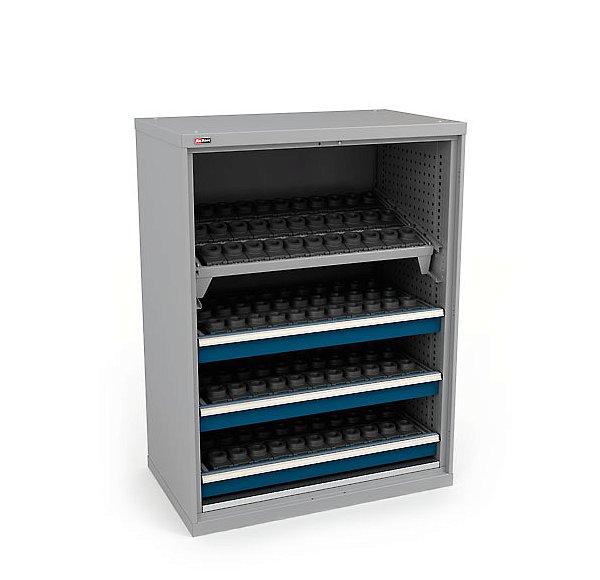

Tool storage system

Rails and frames for storing standard-sized tools. Installed in cabinets with hinged doors, in trolleys, and in deep cabinet drawers.
